Standard and High Efficiency Liquid Filter Bags

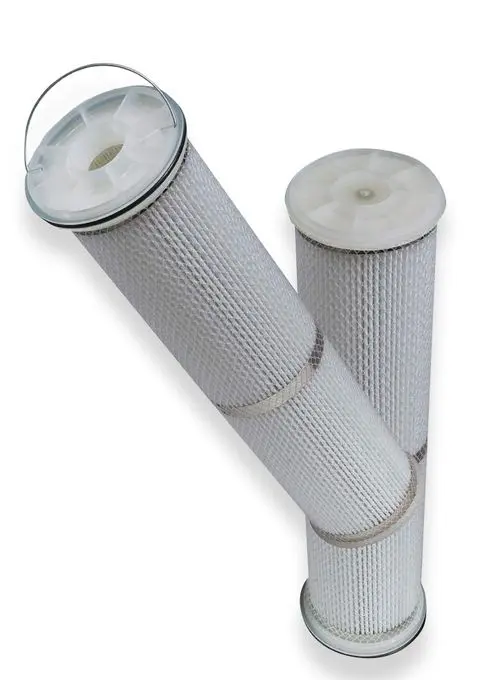

600 Deep Pleat Series Filter Cartridge

Introducing our new absolute rated filter cartridge, the 600 Deep Pleat Series filter cartridge.

With a removal efficiency of 99%, it is available in filtration ranges from 1 to 40 microns.

600 Series Deep Pleated Liquid Cartridge Filter Spec Sheet/Additional Information (PDF)

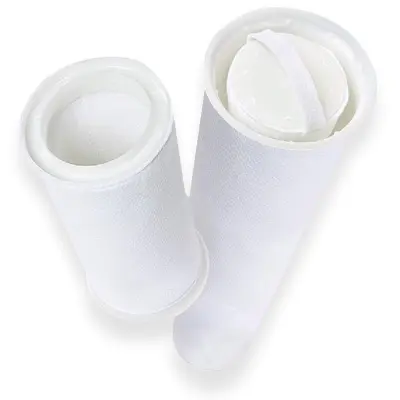

High Efficiency Liquid Filter Bags

Micron ratings from 1.0 to 50.0
All industry standard and custom sizes available
Choice of steel ring or plastic flange
Wide chemical compatibility
Excellent oil absorbing capabilities
Handles on all bags
Eﬃciencies to 95.0%

High Efficiency Liquid Filter Bag Spec Sheet/Additional Information (PDF)

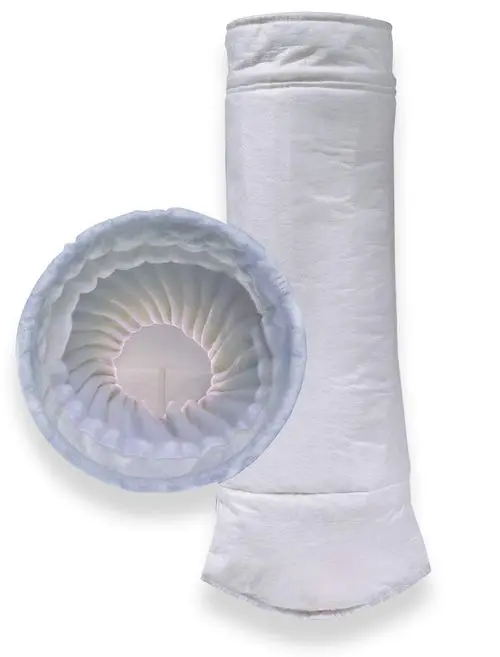

ESP Extended Surface Pleat Bag Filter

Introducing the ESP Extended Surface Pleat bag filter. The ESP Extended Surface Pleat bag filter is designed for high dirt holding capacity and high flow. This is achieved by pleating two layers of nominal felt to create a pre-filter & final filter layer inside a standard Size #2 bag filter.

Extended Surface Pleated Liquid Filter Bag Spec Sheet/Additional Information (PDF)

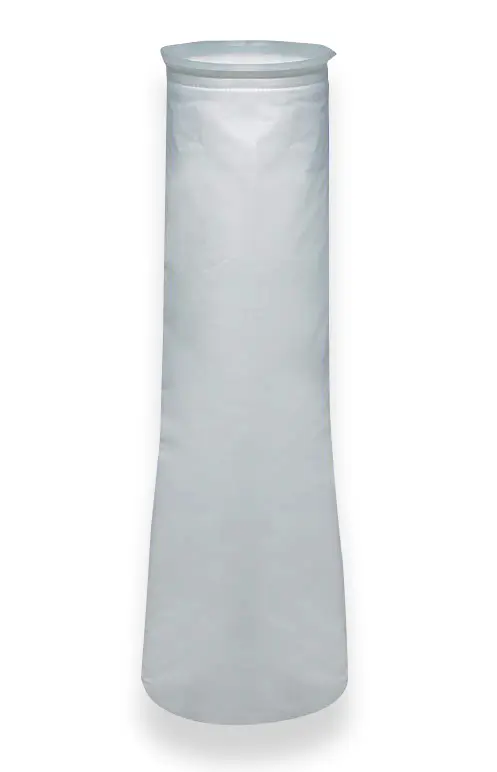

High Performance 500 Series Liquid Filter Bags

Micron ratings from 1.0 to 32
Stainless steel ring standard
Wide chemical compatibility
Excellent oil absorbing capabilities
Handles on all bags
Absolute eﬃciencies to 99.0%

500 Series High Performance Liquid Filter Bag Spec Sheet/Additional Information (PDF)

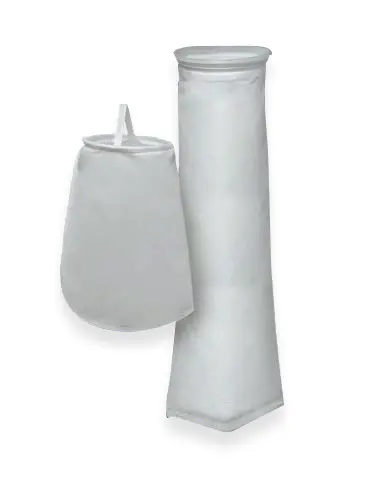

Standard Felt Liquid Filter Bags

Micron ratings from 1 to 200
All industry standard & custom sizes available
Broad chemical compatibility
High flow/low pressure drop
Sewn or fully-welded construction
Handles on all bags
Choice of steel ring or plastic flange
Temperature ratings to 200ºF (PO), 275ºF (PE ), 425ºF (HT) and 500ºF (Teflon®)

Standard Felt Liquid Filter Bag Spec Sheet/Additional Information (PDF)

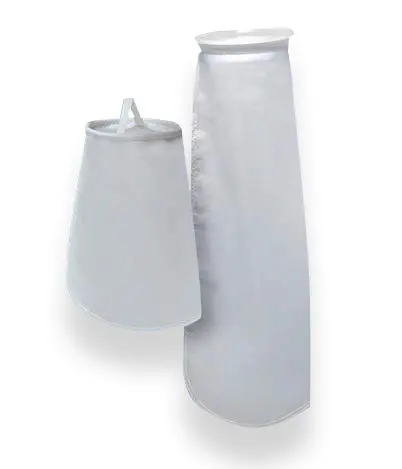

Standard Mesh Liquid Filter Bags

Monofilament & Multifilament

Micron ratings from 1 to 1500
All industry standard and custom sizes available
High flow/low pressure drop media
Surface-retention filtration
Wide chemical compatibility
Sewn construction
Handles standard on all bags
Choice of steel ring or plastic flange
Economical removal of non-deformable contaminants
Non-fiber releasing
Good removal eﬃciencies
Temperature ratings to 350ºF
Polyester and nylon materials meet FDA regulations for contact under CFR21, section 177.1520
Silicone-free construction

Standard Mesh Liquid Filter Bag Spec Sheet/Additional Information (PDF)

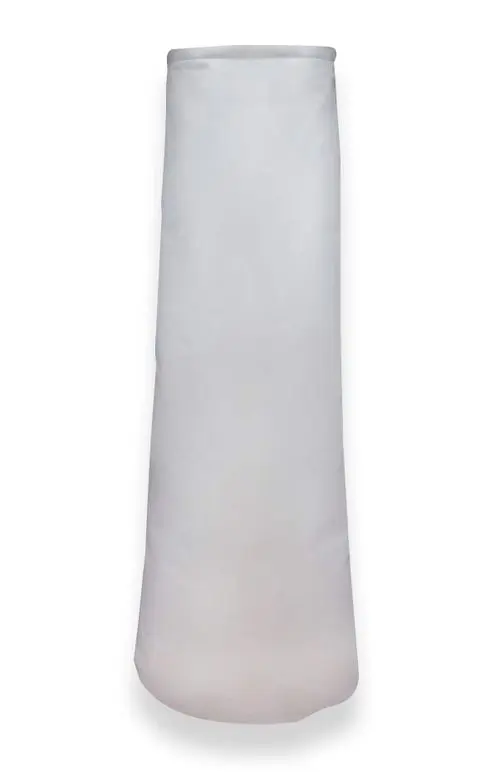

XOAM, Revolutionary Oil Absorbing Bag

Introducing a new cost eﬀective filter bag for absolute filtration applications. This new revolutionary high capacity oil absorbing filter bag called XOAM is uniquely designed to produce one of the highest capacity oil absorbing filter bags in the industry. The diﬀerent layers of micro-fibers not only retain oil, but increase overall eﬃciency to 95% or greater on microns ranging from 1 to 50. This bag is also designed to fit into any standard Size #1 or #2 liquid housing and is available in our 7 in. steel or stainless steel ring and our 7 in. plastic flange which creates a more positive seal and is 100% recyclable.

XOAM Oil Absorbing Bag Spec Sheet/Additional Information (PDF)

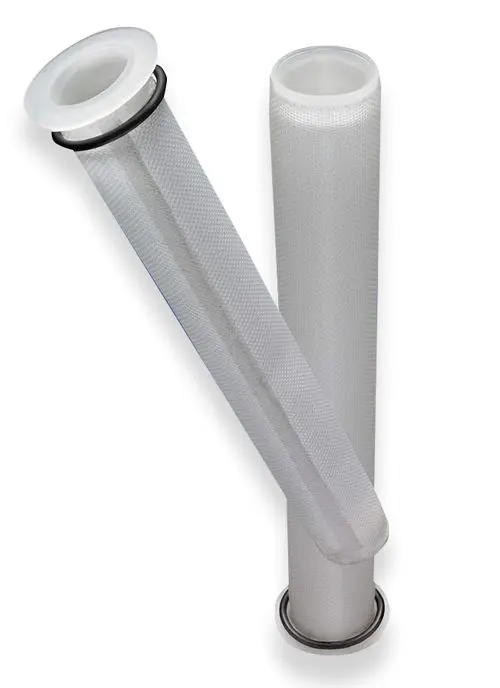

IBF Filter

For use on compact style bag systems:

Ideal for “Low Flow” applications / systems
Wide Chemical Compatibility
Constructed using Monofilament Mesh Materials
– No loose fibers
– Uniform pore size
– Structurally strong
Fully welded side seam & end caps
– Eliminates bypass

IBF Compact Style Filter Bag Spec Sheet/Additional Information (PDF)

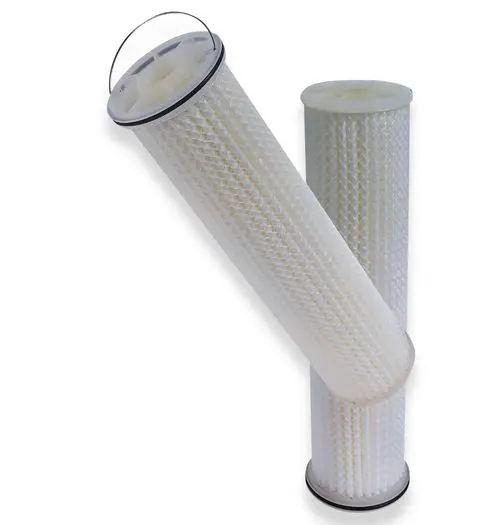

Nominal Depth Cartridge Pleated Filter

Introducing a new nominal rated filter cartridge, the NDC Pleated Filter. Due to the unique design of this pleated cartridge, it provides 5 to 10 times the surface area (depending on micron). Dirt holding capacity and efficiency are maximized by pleating two layers of nominal felt to create a pre-filter & final filter layer.

NDC Pleated Filter Cartridge Spec Sheet/Additional Information (PDF)

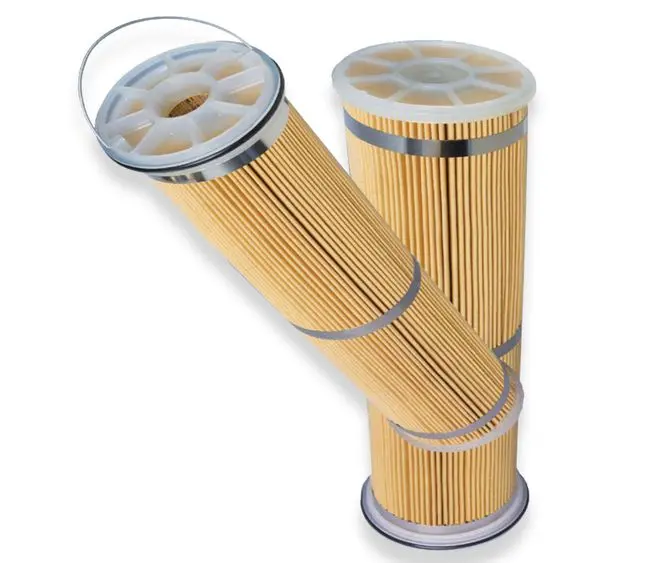

Polyester Phenolic Treatment (PEPT) Deep Pleated Liquid Cartridge Filter

The Polyester Phenolic Treatment (PEPT’s) combines the advantages of non-compressible polyester felt with excellent removal of gel-like contaminants into a cartridge format. In doing so, we maximize the available filtration surface area thus extending the life over a bag filter.

PEPT Liquid Cartridge Spec Sheet/Additional Information (PDF)

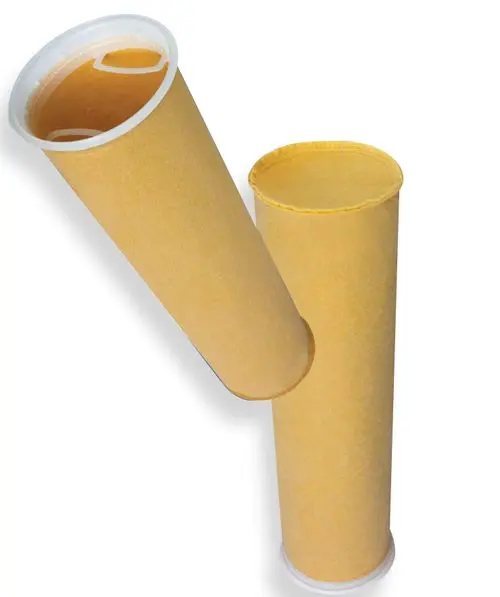

Polyester Phenolic Treatment (PEPT) Liquid Filter Bag

The Polyester Phenolic Treatment (PEPT’s) design incorporates single or dual layers of fully infused Phenolic Resin Textile. The PEPT’s non-compressible depth is more effective than conventional filters in retaining gel-like particles.
